IC IGBT GATE DRIVER

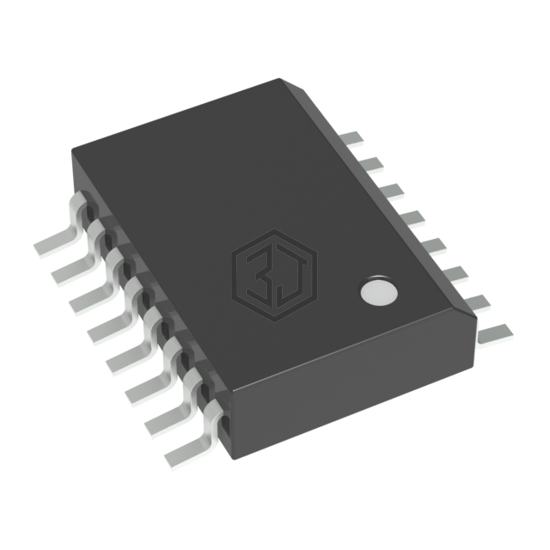

NCV57001DWR2G is a Isolators - Gate Drivers manufactured by onsemi. IC IGBT GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), approval agency UL, VDE.
In Stock: 7,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 1200Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 90ns, 90ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 10ns, 15ns |
| Current - Output High, Low | 7.8A, 7.1A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 0V ~ 24V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | UL, VDE |
Submit your RFQ for NCV57001DWR2G and get a quote within 24 hours.
