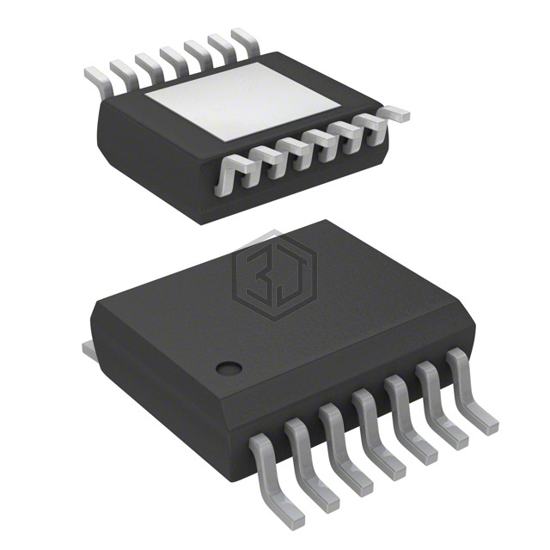

IC REG LIN POS ADJ 200MA 14TSSOP
NCV47821PAAJR2G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN POS ADJ 200MA 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 25 mA.
In Stock: 1,483
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.5V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 1 mA |
| Current - Supply (Max) | 25 mA |
| PSRR | 75dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE4276DVATMA2 | Infineon Technologies | IC REG LIN POS ADJ 400MA TO252-5 | 65% | View |
| TLE4276GVATMA3 | Infineon Technologies | IC REG LIN POS ADJ 400MA TO263-5 | 65% | View |
| TLT125D0EJXUMA1 | Infineon Technologies | IC REG LIN POS ADJ 250MA DSO8-52 | 65% | View |
| LT3065HMSE#PBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 12MSOP | 53% | View |
| LT3065MPMSE#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 12MSOP | 53% | View |
| LT3065MPDD#PBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 10DFN | 53% | View |
Submit your RFQ for NCV47821PAAJR2G and get a quote within 24 hours.
