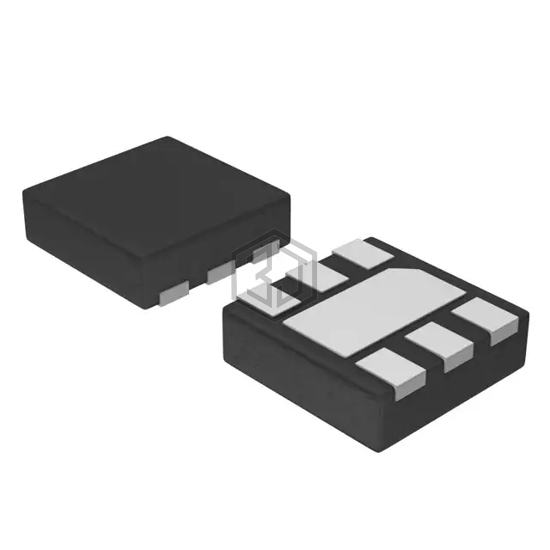

IC OPAMP GP 1 CIRCUIT 6UDFN
NCS2004MUTAG is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by onsemi. IC OPAMP GP 1 CIRCUIT 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 6-UFDFN Exposed Pad, current - supply 400µA.
In Stock: 9,738
| Attribute | Value |
|---|---|
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 2.6V/µs |
| Gain Bandwidth Product | 3.5 MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 45 pA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 400µA |
| Current - Output / Channel | 13 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (1.6x1.6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCS2004AMUTAG | onsemi | IC OPAMP GP 1 CIRCUIT 6UDFN | 100% | View |
| NCS2004SQ3T2G | onsemi | IC OPAMP GP 1 CIRCUIT SC88A | 100% | View |
Submit your RFQ for NCS2004MUTAG and get a quote within 24 hours.
