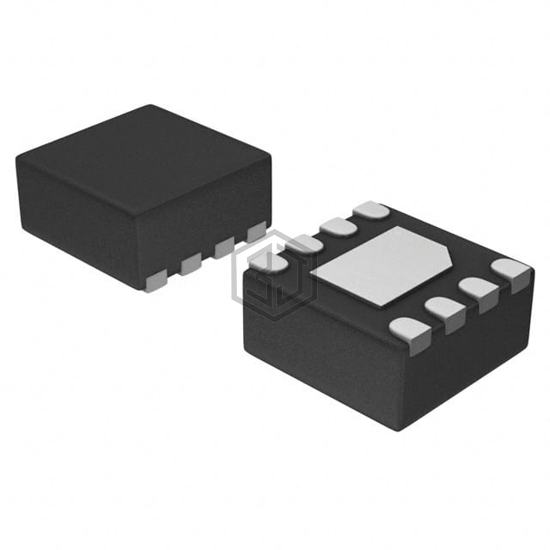

IC GATE DRVR HALF-BRIDGE 8DFN
NCP81080MNTBG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HALF-BRIDGE 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 140°C (TJ), voltage - supply 5.5V ~ 20V, package / case 8-VFDFN Exposed Pad.
In Stock: 498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.8V |
| Current - Peak Output (Source, Sink) | 500mA, 800mA |
| Input Type | TTL |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 19ns, 17ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC2715D | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 86% | View |
| UC2715DTR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 86% | View |
| LT1158ISW#TRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 16SOIC | 74% | View |
| LT1158ISW#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 16SOIC | 74% | View |
| FAN7383MX | onsemi | IC GATE DRVR HALF-BRIDGE 14SOP | 71% | View |
| FAN73832MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 71% | View |
Submit your RFQ for NCP81080MNTBG and get a quote within 24 hours.
