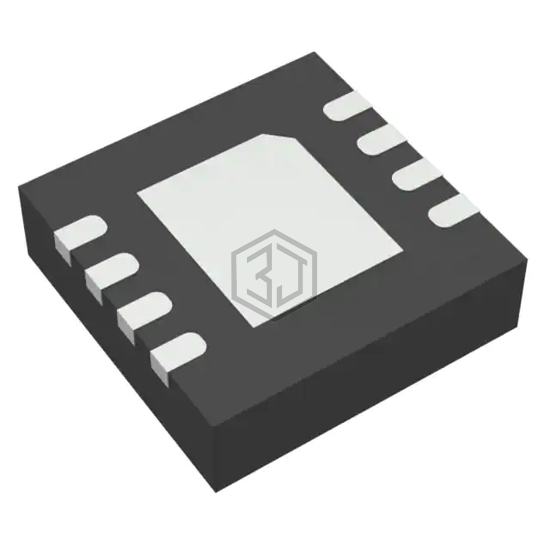

IC GATE DRV HI-SIDE/LO-SIDE 8DFN
NCP81063MNTXG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRV HI-SIDE/LO-SIDE 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 13.2V, package / case 8-VFDFN Exposed Pad.
In Stock: 17,378
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Synchronous |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 13.2V |
| Logic Voltage - VIL, VIH | 0.7V, 3.4V |
| Current - Peak Output (Source, Sink) | 2.5A, 1.6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 30ns, 27ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
NCP81063MNTXG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2ED2182S06FXUMA1 | Infineon Technologies | IC HALF BRIDGE GATE DRIVER 650V | 76% | View |
| 2ED21824S06JXUMA1 | Infineon Technologies | IC HALF BRIDGE GATE DRIVER 650V | 76% | View |
| 2ED21844S06JXUMA1 | Infineon Technologies | IC HALF BRIDGE GATE DRIVER 650V | 76% | View |
| LTC4442EMS8E#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 70% | View |
| LTC4442IMS8E#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 70% | View |
| LTC4442EMS8E-1#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 70% | View |
Submit your RFQ for NCP81063MNTXG and get a quote within 24 hours.
