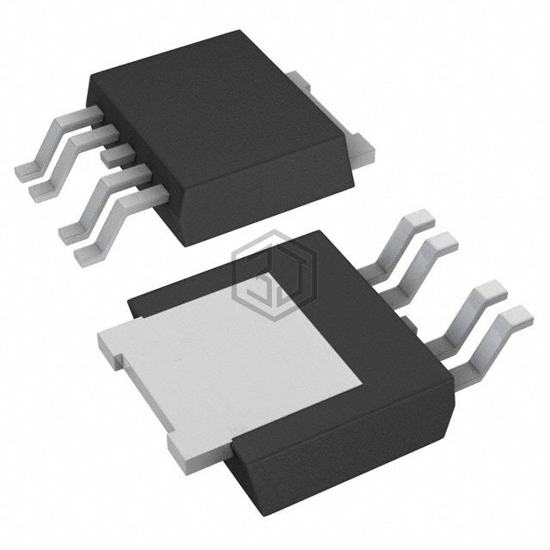

IC REG LINEAR POS ADJ DPAK-5
NCP5504DTRKG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ DPAK-5. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, current - supply (max) 20 mA.
In Stock: 7,359
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 1.25V (3.3V) |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.4V @ 250mA, 0.4V @ 250mA |
| Current - Output | 250mA, 250mA |
| Current - Quiescent (Iq) | 450 µA |
| Current - Supply (Max) | 20 mA |
| PSRR | 75dB ~ 60dB (120Hz ~ 1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | DPAK-5 |
NCP5504DTRKG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV5504DTRKG | onsemi | IC REG LINEAR POS ADJ DPAK-5 | 100% | View |
| MAX667ESA+ | Analog Devices Inc./Maxim Integrated | IC REG LIN POS ADJ 250MA 8SOIC | 81% | View |
| MAX667ESA+T | Analog Devices Inc./Maxim Integrated | IC REG LIN POS ADJ 250MA 8SOIC | 81% | View |
| MAX667ESA | Analog Devices Inc./Maxim Integrated | IC REG LIN POS ADJ 250MA 8SOIC | 81% | View |
| ADP667ARZ-REEL7 | Analog Devices Inc. | IC REG LIN POS ADJ 250MA 8SOIC | 81% | View |
| LP2951CMX/NOPB | Texas Instruments | IC REG LIN POS ADJ 100MA 8SOIC | 52% | View |
Submit your RFQ for NCP5504DTRKG and get a quote within 24 hours.
