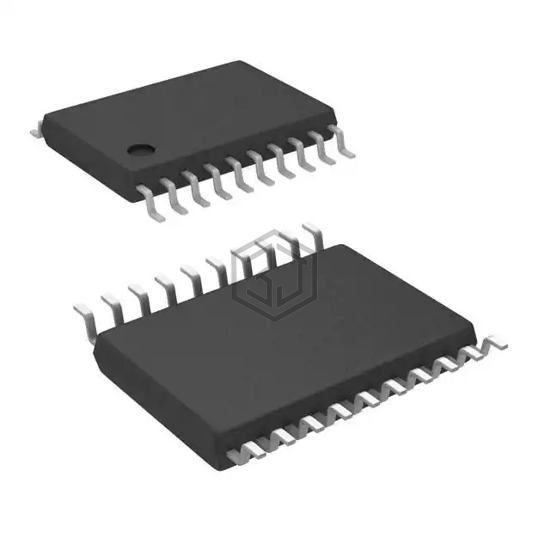

IC REG CTRLR BUCK 20TSSOP
NCP5425DBG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR BUCK 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 16V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 7,074
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 16V |
| Frequency - Switching | 150kHz ~ 750kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
NCP5425DBG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS43351QDAPRQ1 | Texas Instruments | IC REG CTRLR BUCK 38HTSSOP | 100% | View |
| TPS40140RHHT | Texas Instruments | IC REG CTRLR BUCK 36QFN | 99% | View |
| ISL8126IRZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 32QFN | 97% | View |
| ISL8126IRZ-T7A | Renesas Electronics America Inc | IC REG CTRLR BUCK 32QFN | 97% | View |
| L6712QTR | STMicroelectronics | IC REG CTRLR BUCK 36VFQFPN | 93% | View |
| MAX797HESE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16SOIC | 82% | View |
Submit your RFQ for NCP5425DBG and get a quote within 24 hours.
