IC GATE DRVR HALF-BRIDGE 8DIP

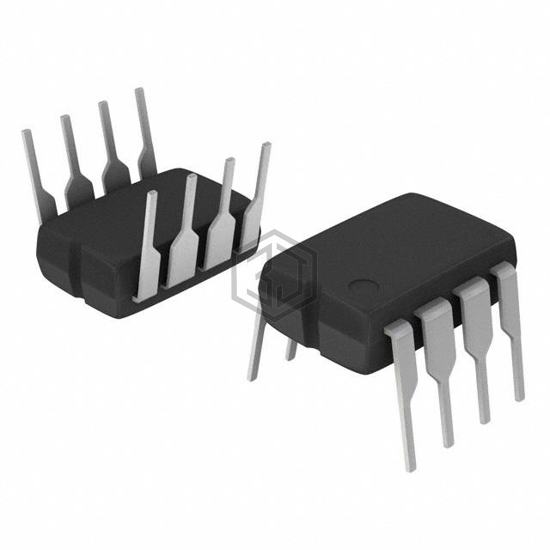

NCP5106BPG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HALF-BRIDGE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply 10V ~ 20V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 5,968
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 85ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
NCP5106BPG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP5106APG | onsemi | IC GATE DRVR HALF-BRIDGE 8DIP | 100% | View |
| IR2102 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 97% | View |
| IR2101 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 97% | View |
| IR2131PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 88% | View |
| IR2131 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 88% | View |
| IRS2003PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 85% | View |
Submit your RFQ for NCP5106BPG and get a quote within 24 hours.
