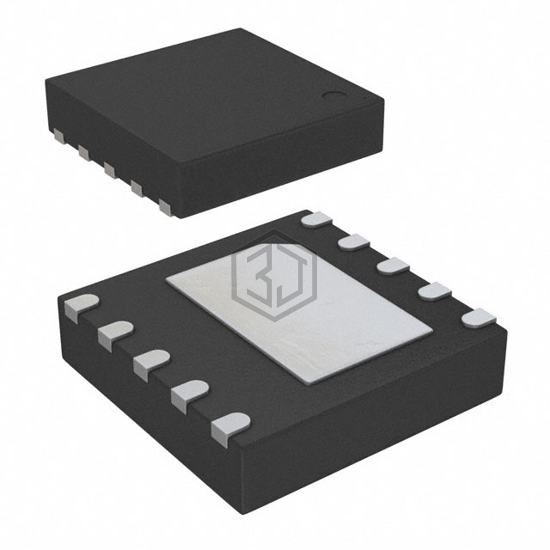

IC GATE DRVR HALF-BRIDGE 10DFN
NCP5106BMNTWG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HALF-BRIDGE 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 10V ~ 20V, package / case 10-VDFN Exposed Pad.
In Stock: 3,132
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 85ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VDFN Exposed Pad |
| Supplier Device Package | 10-DFN (4x4) |
NCP5106BMNTWG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP5106BDR2G | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| NCP5106ADR2G | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| NCP5106AMNTWG | onsemi | IC GATE DRVR HALF-BRIDGE 10DFN | 100% | View |
| NCP5109ADR2G | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 89% | View |
| NCP5109BMNTWG | onsemi | IC GATE DRVR HALF-BRIDGE 10DFN | 89% | View |
| IR2131JTR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 88% | View |
Submit your RFQ for NCP5106BMNTWG and get a quote within 24 hours.
