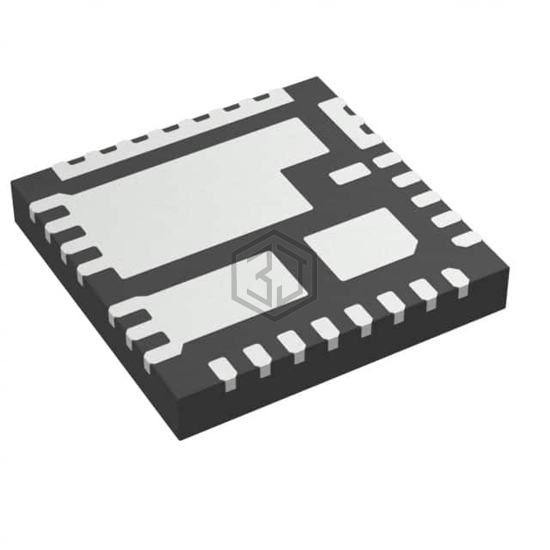

IC GATE DRVR HI/LOW SIDE PQFN31
NCP302150MNTWG is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR HI/LOW SIDE PQFN31. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 31-PowerWFQFN.
In Stock: 4,816
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.7V, 2.65V |
| Current - Peak Output (Source, Sink) | 2A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V |
| Rise / Fall Time (Typ) | 12ns, 6ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerWFQFN |
| Supplier Device Package | 31-PQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP302155MNTWG | onsemi | IC GATE DRVR HI/LOW SIDE PQFN31 | 100% | View |
| TC1412EOA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 85% | View |
| TC1412NEOA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 85% | View |
| TC1412EOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 85% | View |
| TPS2819DBVR | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 84% | View |
| TPS2816DBVR | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 84% | View |
Submit your RFQ for NCP302150MNTWG and get a quote within 24 hours.
