CURRENT-MODE PWM CONTROLL

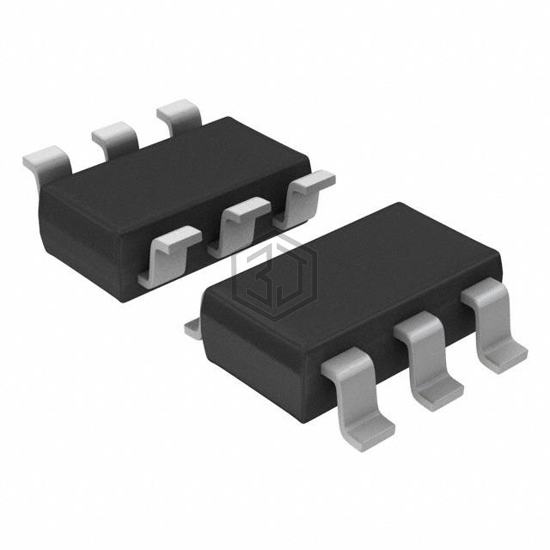

NCP12510CSN65T1G is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. CURRENT-MODE PWM CONTROLL. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply (vcc/vdd) 5V ~ 20V, package / case SOT-23-6 Thin, TSOT-23-6.
In Stock: 33,833
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5V ~ 20V |
| Frequency - Switching | 65kHz |
| Duty Cycle (Max) | 84% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Sense |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL78224ANZ | Renesas Electronics America Inc | AUTO 4 PHASE BI-DIRECTIONAL BUCK | 57% | View |
| ISL78224ANZ-T | Renesas Electronics America Inc | AUTO 4 PHASE BI-DIRECTIONAL BUCK | 57% | View |
Submit your RFQ for NCP12510CSN65T1G and get a quote within 24 hours.
