ISOLATED HIGH CURRENT AND HIGH E

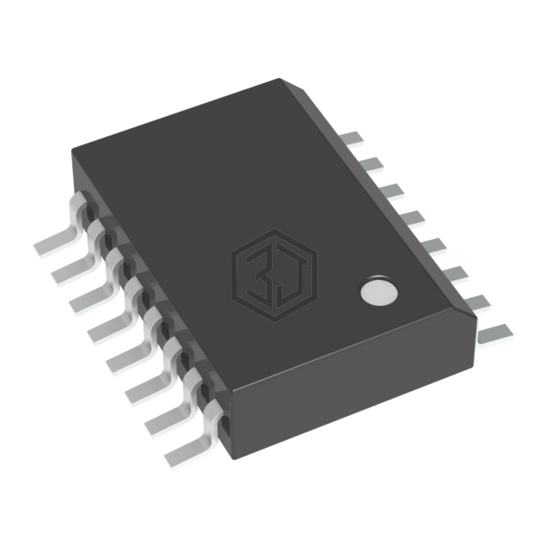

NCD57001FDWR2G is a PMIC - Gate Drivers manufactured by onsemi. ISOLATED HIGH CURRENT AND HIGH E. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 24V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 1,845
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 24V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 7.8A, 7.1A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 10ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCD57000DWR2G | onsemi | IC GATE DRVR HALF-BRIDGE 16SOIC | 100% | View |
| NCD57001DWR2G | onsemi | IC GATE DRVR HALF-BRIDGE 16SOIC | 100% | View |
| NCD5703ADR2G | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 96% | View |
| NCD5703BDR2G | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 96% | View |
| NCD5703CDR2G | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 96% | View |
| NCD5701BDR2G | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 88% | View |
Submit your RFQ for NCD57001FDWR2G and get a quote within 24 hours.
