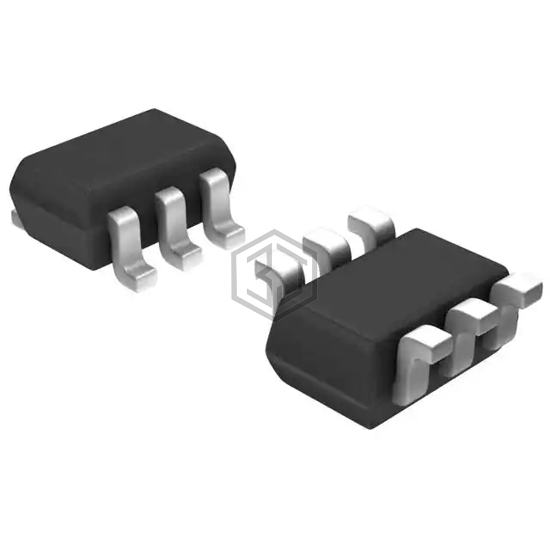

IC SWITCH SPDT 15 OHM SC70-6
NC7SB3157P6X-F080 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH SPDT 15 OHM SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 3,613
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 6.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88 (SC-70-6) |
NC7SB3157P6X-F080 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7SB3157P6X | onsemi | IC SWITCH SPDT SC70-6 | 100% | View |
| NC7SB3157L6X | onsemi | IC SWITCH SPDT 6MICROPAK | 100% | View |
| FSA3157BL6X | Fairchild Semiconductor | LOW VOLTAGE SPDT ANALOG SWITCH O | 100% | View |
| PI5A3157BC6EX-1507 | Diodes Incorporated | IC SWITCH SPDT SC70-6 | 91% | View |
| PI5A3157BC6EX | Diodes Incorporated | IC SWITCH CMOS SPDT SC70-6 | 91% | View |
| PI5A3157BZUEX-55 | Diodes Incorporated | ANALOG SWITCH 3V-5V U-DFN1010-6 | 82% | View |
Submit your RFQ for NC7SB3157P6X-F080 and get a quote within 24 hours.
