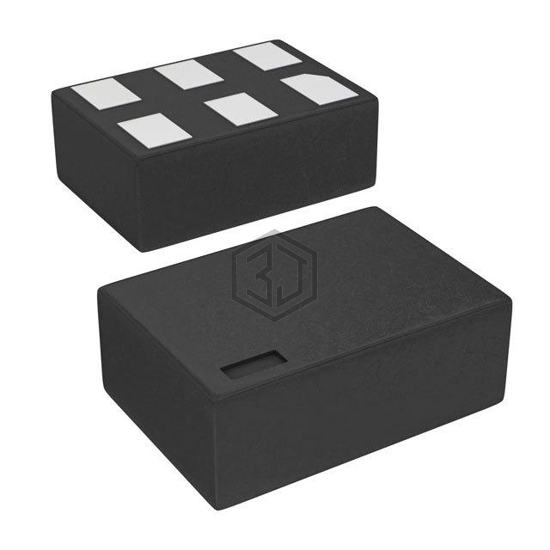

IC INVERTER 1CH 1-INP 6MICROPAK
NC7S14L6X is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER 1CH 1-INP 6MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 6-UFDFN.
In Stock: 1,163
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Logic Level - Low | 0.3V ~ 1.5V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroPak |
| Package / Case | 6-UFDFN |
NC7S14L6X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7S14M5 | Fairchild Semiconductor | IC INVERTER 1CH 1-INP SOT23-5 | 100% | View |
| NC7S04M5X-L22090 | onsemi | IC INVERTER 1CH 1-INP SOT23-5 | 100% | View |
| 74HC1G04GV-Q100H | Nexperia USA Inc. | IC INVERTER 1CH 1-INP SC74A | 82% | View |
| 74HC1G04GW-Q100125 | NXP USA Inc. | IC INVERTER 1CH 1-INP 5TSSOP | 82% | View |
| NC7SPU04P5X | onsemi | IC INVERTER 1CH 1-INP SC70-5 | 81% | View |
| NC7SP04FHX | Fairchild Semiconductor | IC INVERTER 1CH 1-INP 6MICROPAK2 | 79% | View |
