TRANS BRT NPN 100MA 50V SC59

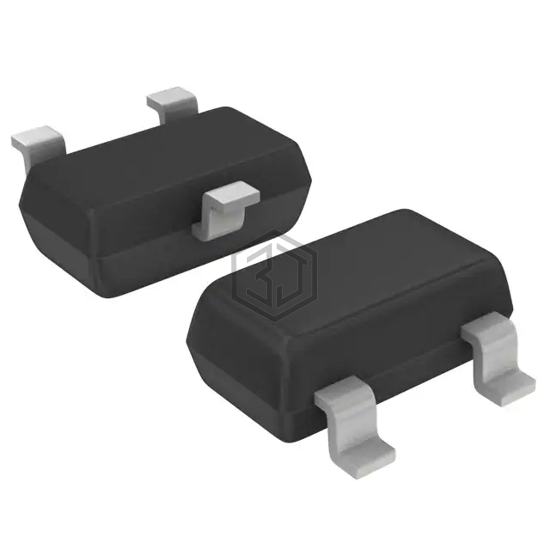

MUN2214T1 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. TRANS BRT NPN 100MA 50V SC59. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 100 mA, power - max 338 mW.
In Stock: 117,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 338 mW |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59 |
Submit your RFQ for MUN2214T1 and get a quote within 24 hours.
