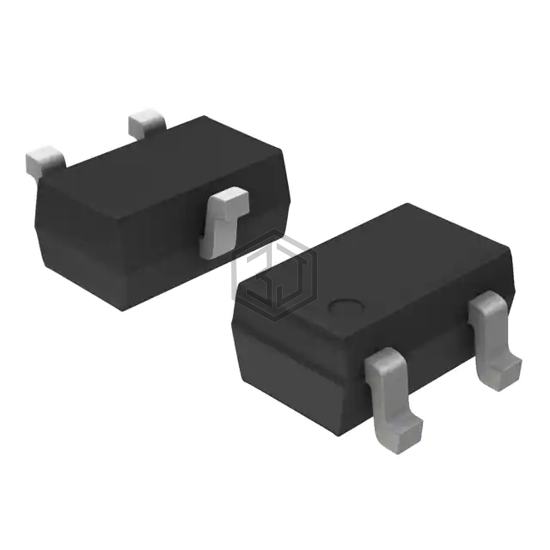

MMBF2202PT1
MOSFET P-CH 20V 0.3A SOT-323
MMBF2202PT1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 0.3A SOT-323. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 1,360,742
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 300mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 200mA, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.7 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 5 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-3 (SOT323) |
| Package / Case | SC-70, SOT-323 |
Frequently Asked Questions
MMBF2202PT1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 0.3A SOT-323
The mounting type of MMBF2202PT1 is Surface Mount.
The package type of MMBF2202PT1 is SC-70, SOT-323.
Yes, MMBF2202PT1 is listed as Obsolete. Consider requesting a quote for alternative parts.
