MOSFET N-CH 20V 4.5A SC70

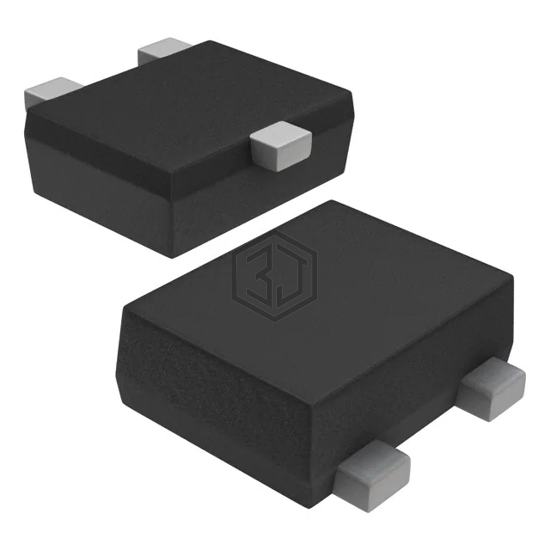

MCH3477-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 4.5A SC70. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-23-3 Flat Leads.
In Stock: 94,846
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 410 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70FL/MCPH3 |
| Package / Case | SOT-23-3 Flat Leads |
Submit your RFQ for MCH3477-TL-W and get a quote within 24 hours.
