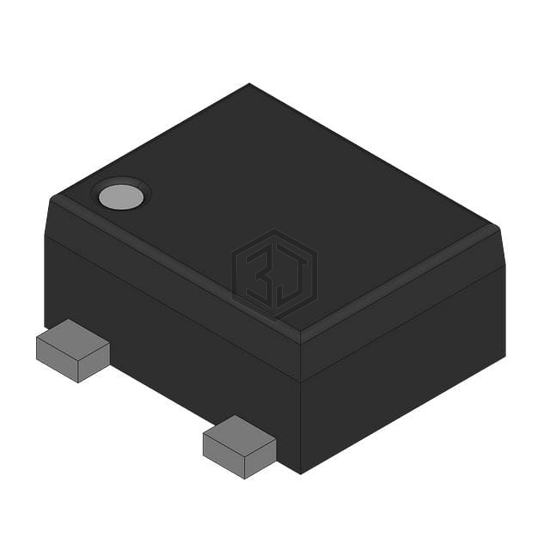

MOSFET N-CH 100V 800MA 3MCPH
MCH3421-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 800MA 3MCPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Flat Leads.
In Stock: 225,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 890mOhm @ 400mA, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 4.8 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 165 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 900mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-MCPH |
| Package / Case | 3-SMD, Flat Leads |
Submit your RFQ for MCH3421-TL-E and get a quote within 24 hours.
