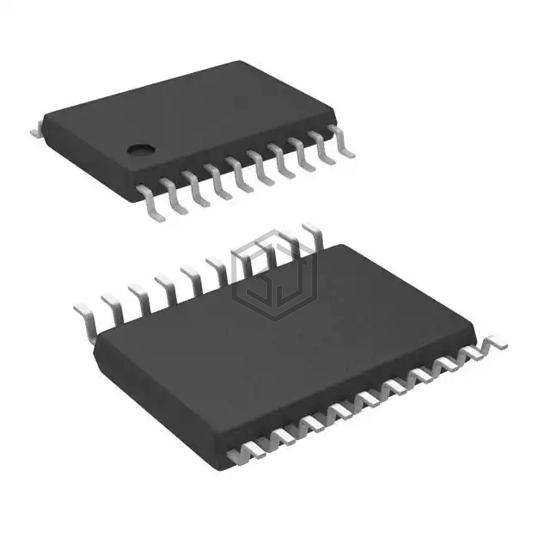

IC FF D-TYPE SNGL 8BIT 20TSSOP
MC74VHC574DTR2 is a Logic - Flip Flops manufactured by onsemi. IC FF D-TYPE SNGL 8BIT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 5.5V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 8,821
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 115 MHz |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
MC74VHC574DTR2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74VHC574DWR2G | onsemi | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| MC74VHC574DTR2G | onsemi | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74AHC574NSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 98% | View |
| 74AHC574BQ,115 | Nexperia USA Inc. | IC FF D-TYPE SNGL 8BIT 20DHVQFN | 98% | View |
| SN74AHC574DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 98% | View |
| 74AHC574D,112 | NXP USA Inc. | IC FF D-TYPE SNGL 8BIT 20SO | 98% | View |
Submit your RFQ for MC74VHC574DTR2 and get a quote within 24 hours.
