LOGIC GATE

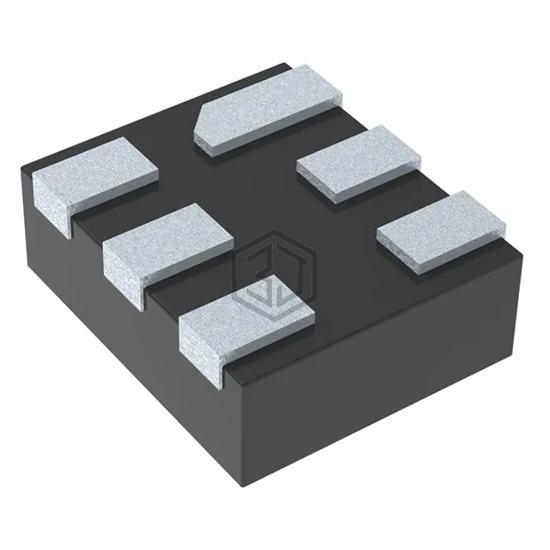

MC74VHC1G04MU2TCG is a Logic - Gates and Inverters manufactured by onsemi. LOGIC GATE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 6-UFDFN.
In Stock: 1,905
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-UDFN (1.2x1) |
| Package / Case | 6-UFDFN |
MC74VHC1G04MU2TCG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| M74VHC1GT04DFT3G | onsemi | IC INVERTER 1CH 1-INP SC88A | 96% | View |
| NL17SHT04P5T5G | onsemi | IC INVERTER 1CH 1-INP SOT953 | 96% | View |
| NLU1GT04BMX1TCG | onsemi | IC INVERTER 1CH 1-INP 6ULLGA | 94% | View |
| NLV17SGU04DFT2G | onsemi | IC INVERTER 1CH 1-INP SC88A | 80% | View |
| NL17SG14DFT2G | onsemi | IC INVERT SCHMITT 1CH 1-IN SC88A | 72% | View |
| NLV74VHC14DR2G | onsemi | IC INV SCHMITT 6CH 1-IN 14SOIC | 69% | View |
Submit your RFQ for MC74VHC1G04MU2TCG and get a quote within 24 hours.
