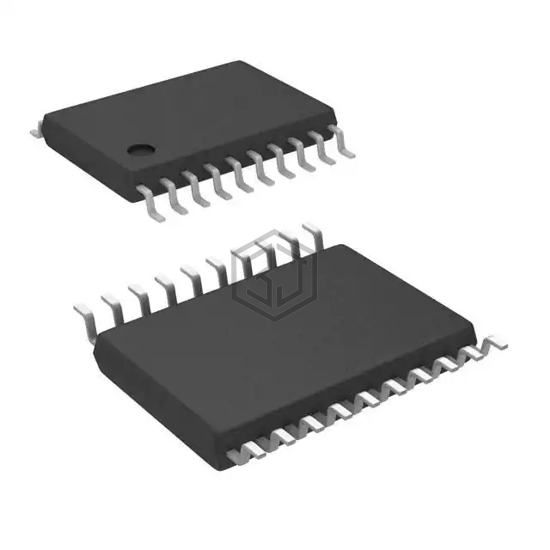

IC FF D-TYPE SNGL 8BIT 20TSSOP
MC74LVX574DTR2 is a Logic - Flip Flops manufactured by onsemi. IC FF D-TYPE SNGL 8BIT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 3.6V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 15,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 75 MHz |
| Max Propagation Delay @ V, Max CL | 16.7ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
MC74LVX574DTR2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74LVX574DTG | onsemi | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| MC74LVX574MELG | onsemi | IC FF D-TYPE SNGL 8BIT 20SOEIAJ | 100% | View |
| MC74LVX574MEL | onsemi | IC FF D-TYPE SNGL 8BIT 20SOEIAJ | 100% | View |
| 74LVX574MTC | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| MC74LVX574DWR2 | onsemi | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| 74LVX574SJX | onsemi | IC FF D-TYPE SNGL 8BIT 20SOP | 100% | View |
Submit your RFQ for MC74LVX574DTR2 and get a quote within 24 hours.
