IC FF D-TYPE SNGL 8BIT 20DIP

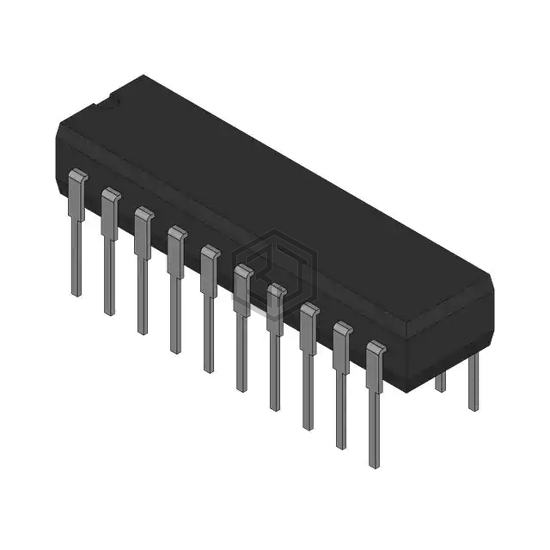

MC74HC564AN is a Logic - Flip Flops manufactured by onsemi. IC FF D-TYPE SNGL 8BIT 20DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 9,354
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 60 MHz |
| Max Propagation Delay @ V, Max CL | 28ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74HC534AN | onsemi | IC FF D-TYPE SNGL 8BIT 20DIP | 100% | View |
| CD74HC534E | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20DIP | 100% | View |
| SN74HC534N | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20DIP | 100% | View |
| CD54HC534F | Harris Corporation | OCTAL D-TYPE FLIP FLOP | 100% | View |
| CD54HC564F | Harris Corporation | OCTAL D-TYPE FLIP FLOP | 100% | View |
| CD54HCT534F | Harris Corporation | OCTAL D-TYPE FLIP FLOP | 86% | View |
Submit your RFQ for MC74HC564AN and get a quote within 24 hours.
