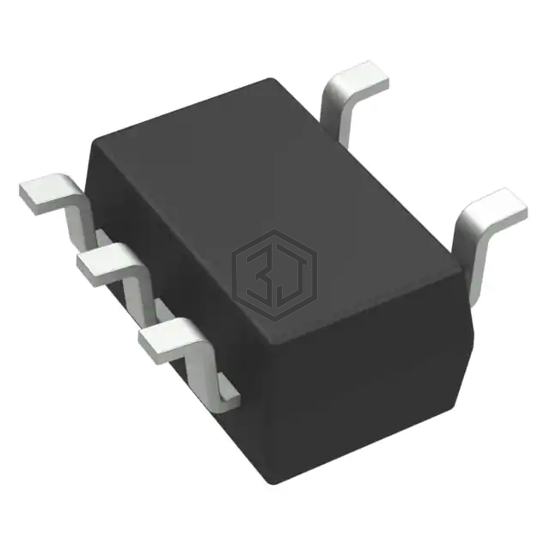

IC INVERTER SGL SCHMITT 5TSOP
MC74HC1G14DTT1 is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER SGL SCHMITT 5TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SOT-23-5 Thin, TSOT-23-5.
In Stock: 7,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Logic Level - Low | 0.9V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSOP |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74HC1G14DTT1G | onsemi | IC INVERT SCHMITT 1CH 1-IN 5TSOP | 100% | View |
| MC74HC1G14DBVT1G | onsemi | IC INVERT SCHMITT 1CH 1-IN SC74A | 100% | View |
| NLVHC1G14DFT1G | onsemi | IC INVERT SCHMITT 1CH 1-IN SC88A | 100% | View |
| MC74HC1G04DTT1G | onsemi | IC INVERTER 1CH 1-INP 5TSOP | 94% | View |
| MC74HC1GU04DFT1G | onsemi | IC INVERTER 1CH 1-INP SC88A | 92% | View |
| MC74HC1GU04DFT2G | onsemi | IC INVERTER 1CH 1-INP SC88A | 92% | View |
Submit your RFQ for MC74HC1G14DTT1 and get a quote within 24 hours.
