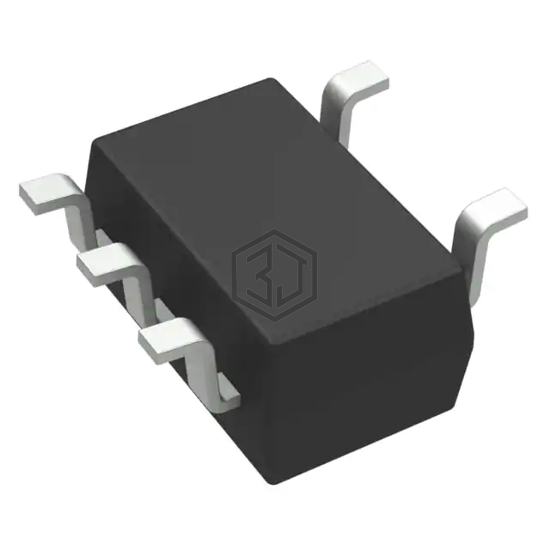

IC GATE NAND 1CH 2-INP 5TSOP
MC74HC1G00DTT1 is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 1CH 2-INP 5TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SOT-23-5 Thin, TSOT-23-5.
In Stock: 3,689
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSOP |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
MC74HC1G00DTT1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLV74HC1G00DFT1G | onsemi | IC GATE NAND 1CH 2-INP SC88A | 100% | View |
| MC74HC1G00DTT1G | onsemi | IC GATE NAND 1CH 2-INP 5TSOP | 100% | View |
| MC74HC1G00DFT2 | onsemi | IC GATE NAND 1CH 2-INP SC-70 | 100% | View |
| MC74HC1G00DFT1GH | onsemi | IC GATE NAND 1CH 2-INPUT | 100% | View |
| NLVHC1G00DFT2G | onsemi | IC GATE NAND 1CH 2-INP SC88A | 88% | View |
| NLV74HC1G00DTT1G | onsemi | IC GATE NAND 1CH 2-INP 5TSOP | 88% | View |
Submit your RFQ for MC74HC1G00DTT1 and get a quote within 24 hours.
