IC GATE NAND 4CH 2-INP 14DIP

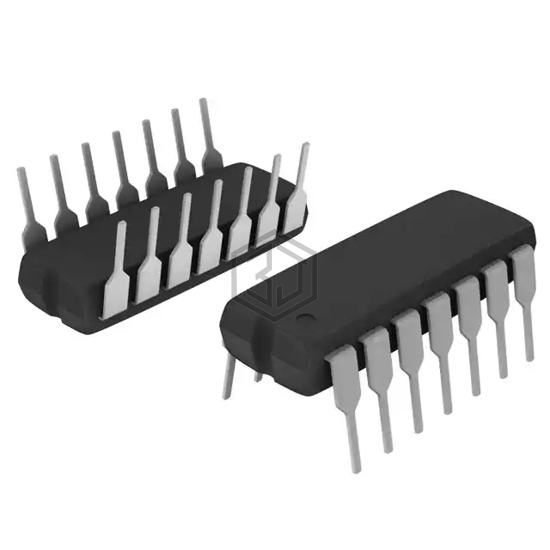

MC74AC00NG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 8,255
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.9V ~ 1.65V |
| Logic Level - High | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
MC74AC00NG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74ACT00E | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 86% | View |
| CD74AC00E | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 86% | View |
| CD54AC00F3A | Harris Corporation | QUAD 2-INPUT NAND GATE | 86% | View |
| CD74AC00EX | Harris Corporation | QUAD 2-INPUT NAND GATE | 86% | View |
| CD74AC10E | Texas Instruments | IC GATE NAND 3CH 3-INP 14DIP | 77% | View |
| CD74AC10EX | Harris Corporation | TRIPLE 3-INPUT NAND GATE | 77% | View |
Submit your RFQ for MC74AC00NG and get a quote within 24 hours.
