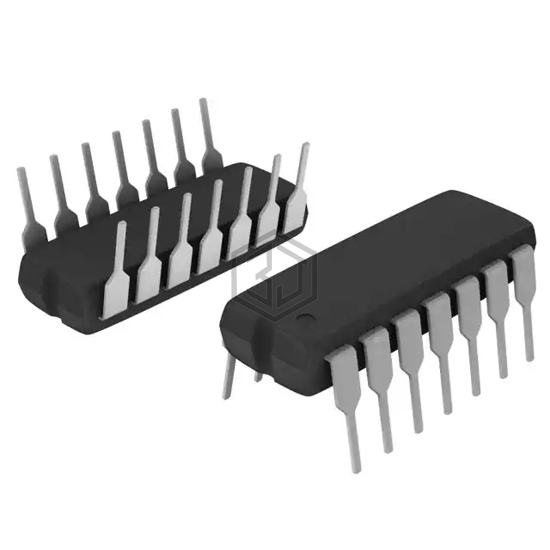

IC GATE NOR 4CH 2-INP 14DIP
MC14001BCPG is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 4CH 2-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 3,781
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
MC14001BCPG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MM74C02N | onsemi | IC GATE NOR 4CH 2-INP 14DIP | 94% | View |
| MC14025BCPG | onsemi | IC GATE NOR 3CH 3-INP 14DIP | 92% | View |
| CD4001BEX | Harris Corporation | CMOS QUAD 2-INPUT NOR GATE | 85% | View |
| CD4001BD3 | Harris Corporation | CMOS QUAD 2-INPUT NOR GATE | 85% | View |
| CD4000BD | Harris Corporation | DUAL 3-INPUT NOR GATE & INVERTER | 78% | View |
| NTE4078B | NTE Electronics, Inc | IC-CMOS NOR GATE 14-LED DIP | 76% | View |
Submit your RFQ for MC14001BCPG and get a quote within 24 hours.
