IC GATE OR 4CH 2-INP 20PLCC

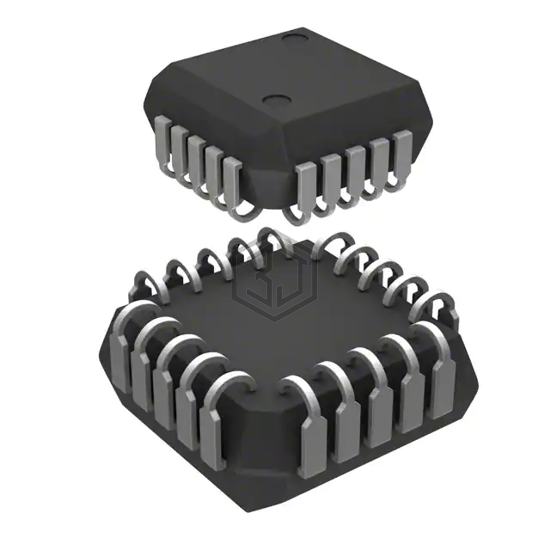

MC10H103FN is a Logic - Gates and Inverters manufactured by onsemi. IC GATE OR 4CH 2-INP 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C, voltage - supply -4.94V ~ -5.46V, package / case 20-LCC (J-Lead).
In Stock: 10,702
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | 1 of 4 OR/NOR Output |
| Voltage - Supply | -4.94V ~ -5.46V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 50mA, 50mA |
| Logic Level - Low | -1.48V |
| Logic Level - High | -1.13V |
| Max Propagation Delay @ V, Max CL | 1.3ns @ -5.2V, - |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-PLCC (9x9) |
| Package / Case | 20-LCC (J-Lead) |
MC10H103FN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC10H103MG | onsemi | IC GATE OR 4CH 2-INP 16SOEIAJ | 100% | View |
| MC10H103FNR2G | onsemi | IC GATE OR 4CH 2-INP 20PLCC | 100% | View |
| MC10H103FNG | onsemi | IC GATE OR 4CH 2-INP 20PLCC | 100% | View |
| MC10H103MEL | onsemi | IC GATE OR 4CH 2-INP 16SOEIAJ | 100% | View |
| MC10H103M | onsemi | IC GATE OR 4CH 2-INP 16SOEIAJ | 100% | View |
| MC10H103FNR2 | onsemi | IC GATE OR 4CH 2-INP 20PLCC | 100% | View |
Submit your RFQ for MC10H103FN and get a quote within 24 hours.
