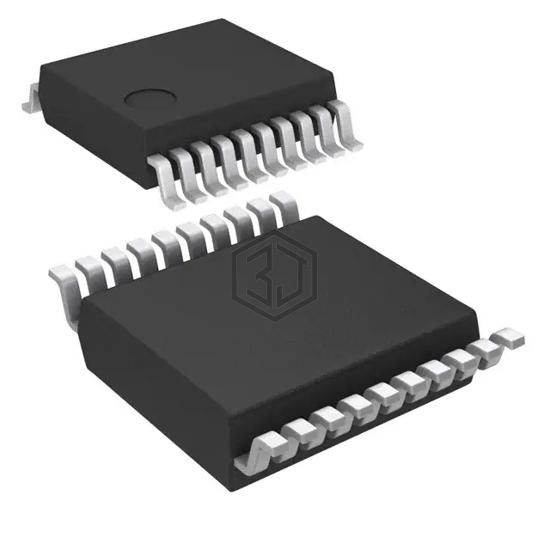

IC MOTOR DVR PWM 3PH 20SSOP
LV8814J-AH is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DVR PWM 3PH 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 3.6V ~ 16V, package / case 20-LSSOP (0.173", 4.40mm Width).
In Stock: 6,596
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver |
| Output Configuration | Half Bridge (3) |
| Interface | PWM |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 2A |
| Voltage - Supply | 3.6V ~ 16V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-SSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP6650GJR-0000-Z | Monolithic Power Systems Inc. | 18V, 2A,SINGLE-PHASE, BLDC MOTOR | 98% | View |
| MP6650GJS-0000-P | Monolithic Power Systems Inc. | 18V, 2A,SINGLE-PHASE, BLDC MOTOR | 98% | View |
| MP6650GJSR-0000-P | Monolithic Power Systems Inc. | 18V, 2A,SINGLE-PHASE, BLDC MOTOR | 98% | View |
| MP6650GJR-0000-P | Monolithic Power Systems Inc. | 18V, 2A,SINGLE-PHASE, BLDC MOTOR | 98% | View |
| MP6650GJL-0000-P | Monolithic Power Systems Inc. | 18V, 2A,SINGLE-PHASE, BLDC MOTOR | 98% | View |
| MP6650GJS-0000-Z | Monolithic Power Systems Inc. | 18V, 2A,SINGLE-PHASE, BLDC MOTOR | 98% | View |
Submit your RFQ for LV8814J-AH and get a quote within 24 hours.
