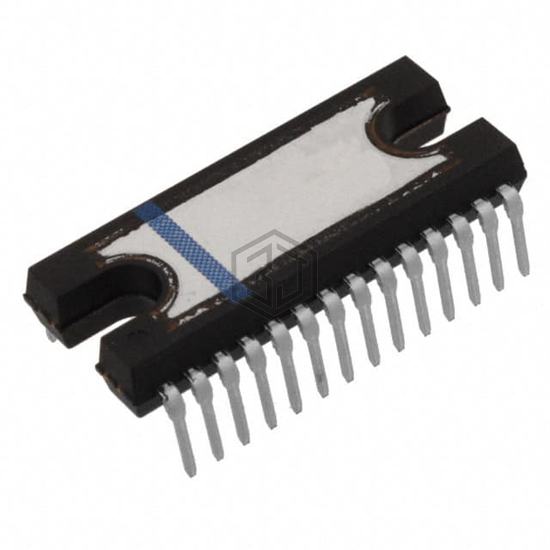

IC MTR DRV BIPOLAR 0-5.5V 28HDIP
LV8772-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MTR DRV BIPOLAR 0-5.5V 28HDIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 0V ~ 5.5V, package / case 28-SDIP (0.500", 12.70mm) Exposed Pad.
In Stock: 3,422
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | BiCDMOS |
| Step Resolution | 1, 1/2, 1/4, 1/16 |
| Applications | General Purpose |
| Current - Output | 2.5A |
| Voltage - Supply | 0V ~ 5.5V |
| Voltage - Load | 9V ~ 32V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-HDIP |
LV8772-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TB62213AHQ,8 | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPLR 25V 25HZIP | 95% | View |
| TB62213AHQ | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPLR 25V 25HZIP | 95% | View |
| SMA6823MHLF2451 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 60% | View |
| SIM6891M | Sanken | IPM - HIGH VOLTAGE 3 PHASE MOTOR | 60% | View |
| SMA6823MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 60% | View |
| SMA6853MX LF2451 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 60% | View |
Submit your RFQ for LV8772-E and get a quote within 24 hours.
