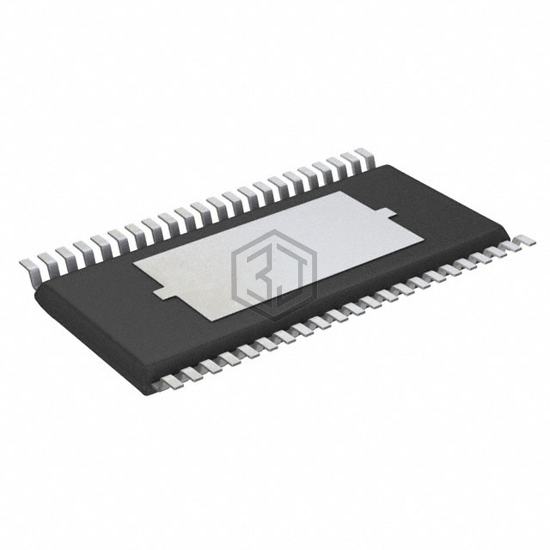

IC MTR DRV BIPOLR 0-5.5V 44SSOPJ
LV8702V-TLM-H is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MTR DRV BIPOLR 0-5.5V 44SSOPJ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 0V ~ 5.5V, package / case 44-LSSOP (0.220", 5.60mm Width) Exposed Pad.
In Stock: 6,594
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | BiCDMOS |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 2.5A |
| Voltage - Supply | 0V ~ 5.5V |
| Voltage - Load | 9V ~ 32V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad |
| Supplier Device Package | 44-SSOPJ-EP |
LV8702V-TLM-H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8825PWPR | Texas Instruments | IC MTR DRVR BIPLR 8.2-45V 28SSOP | 98% | View |
| DRV8434PWPR | Texas Instruments | IC MOTOR DRIVER | 83% | View |
| DRV8424PRGER | Texas Instruments | 35V, 2.5A BIPOLAR STEPPER OR DUA | 83% | View |
| MP6601GU-Z | Monolithic Power Systems Inc. | STEPPER MOTOR DRIVER | 75% | View |
| MP6500GU-Z | Monolithic Power Systems Inc. | IC MTR DRVR BIPOLR 4.5-35V 24QFN | 75% | View |
| MP6501AGF | Monolithic Power Systems Inc. | IC MTR DRV BIPOLAR 8-35V 28TSSOP | 75% | View |
Submit your RFQ for LV8702V-TLM-H and get a quote within 24 hours.
