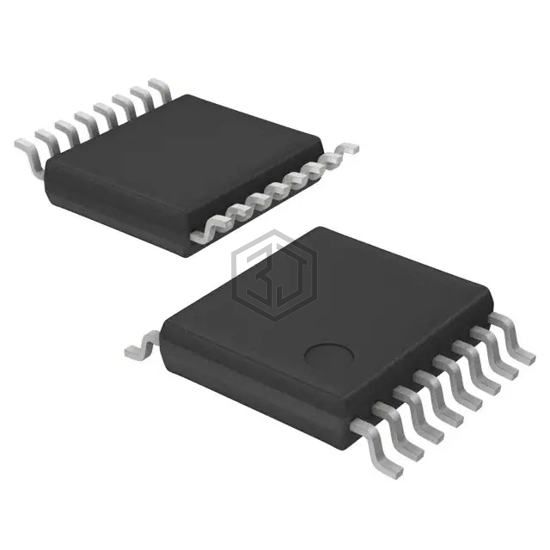

IC REG CTRLR BUCK 16SSOP
LV5769VZ-MPB-E is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR BUCK 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 42V, package / case 16-LSSOP (0.173", 4.40mm Width).
In Stock: 2,207
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 42V |
| Frequency - Switching | 80kHz ~ 500kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-SSOP |
LV5769VZ-MPB-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV5768V-A-TLM-E | onsemi | IC REG CTRLR BUCK 16SSOP | 100% | View |
| LV5768V-TLM-E | onsemi | IC REG CTRLR BUCK 16SSOP | 100% | View |
| LV5768V-A-MPB-E | Sanyo | STEP-DOWN SWITCHING REGULATOR | 100% | View |
| LV5768M-TLM-H | onsemi | IC REG CTRLR BUCK 14-MFPS | 100% | View |
| LV5768MZ-MPB-H | onsemi | IC REG CTRLR BUCK 14-MFPS | 100% | View |
| S-8520D28MC-BVNT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 74% | View |
Submit your RFQ for LV5769VZ-MPB-E and get a quote within 24 hours.
