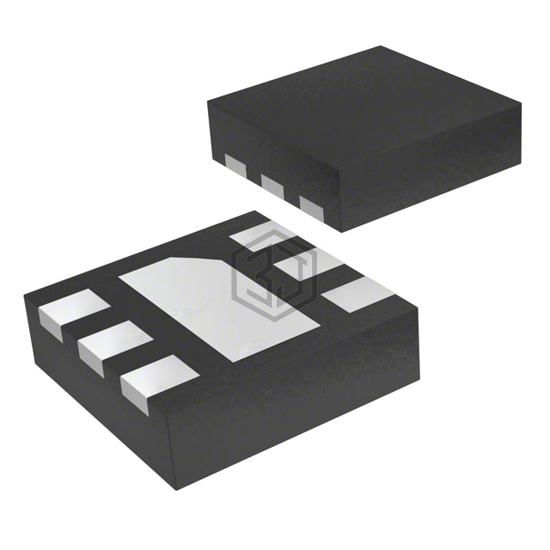

IC LED DRV RGLTR PWM 700MA 6WDFN
LV52204MTTBG is a PMIC - LED Drivers manufactured by onsemi. IC LED DRV RGLTR PWM 700MA 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 6-WDFN Exposed Pad, current - output / channel 700mA (Switch).
In Stock: 90,997
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 700mA (Switch) |
| Frequency | 600kHz |
| Dimming | PWM, Single-Wire |
| Applications | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) |
LV52204MTTBG is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS61161ADRVR | Texas Instruments | IC LED DRV RGLTR PWM 700MA 6WSON | 89% | View |
| TPS61161DRVR | Texas Instruments | IC LED DRV RGLTR PWM 700MA 6WSON | 89% | View |
| MIC2297-15YML-TR | Microchip Technology | IC LED DRIVER RGLTR DIM 10MLF | 84% | View |
| MP2489DQ-LF-P | Monolithic Power Systems Inc. | IC LED DRIVER RGLTR PWM 1A 6QFN | 72% | View |
| MP2489DJ-LF-P | Monolithic Power Systems Inc. | IC LED DRV RGLTR PWM 1A TSOT23-5 | 72% | View |
| ZXLD1320DCATC | Diodes Incorporated | IC LED DRVR RGLTR PWM 1.5A 14DFN | 71% | View |
Submit your RFQ for LV52204MTTBG and get a quote within 24 hours.
