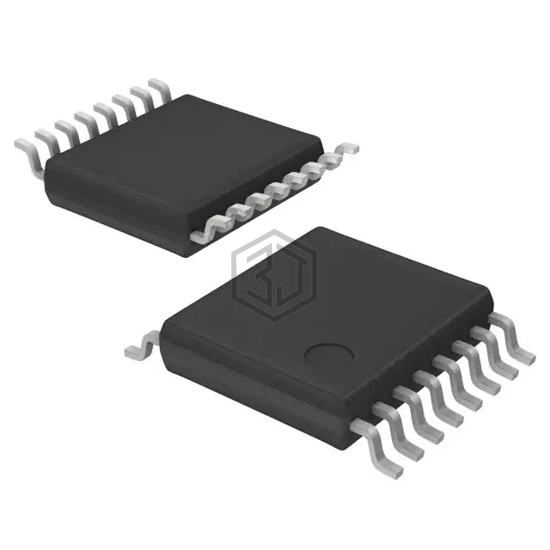

IC REG CTRLR BUCK 16SSOP
LV5069JA-AH is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR BUCK 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 23V, package / case 16-LSSOP (0.173", 4.40mm Width).
In Stock: 702,540
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 23V |
| Frequency - Switching | 330kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-SSOP |
LV5069JA-AH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7800IUDC#PBF | Analog Devices Inc. | IC REG CTRLR SYNC BUCK 60V 20QFN | 97% | View |
| LTC7800HUDC#TRPBF | Analog Devices Inc. | IC REG CTRLR SYNC BUCK 60V 20QFN | 97% | View |
| LTC7800HUDC#PBF | Analog Devices Inc. | IC REG CTRLR SYNC BUCK 60V 20QFN | 97% | View |
| LTC7800EUDC#TRPBF | Analog Devices Inc. | IC REG CTRLR SYNC BUCK 60V 20QFN | 97% | View |
| LTC7800IUDC#TRPBF | Analog Devices Inc. | IC REG CTRLR SYNC BUCK 60V 20QFN | 97% | View |
| LTC3802EGN#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 28SSOP | 80% | View |
Submit your RFQ for LV5069JA-AH and get a quote within 24 hours.
