IC MOTOR DRIVER BIPOLAR 28HSOP

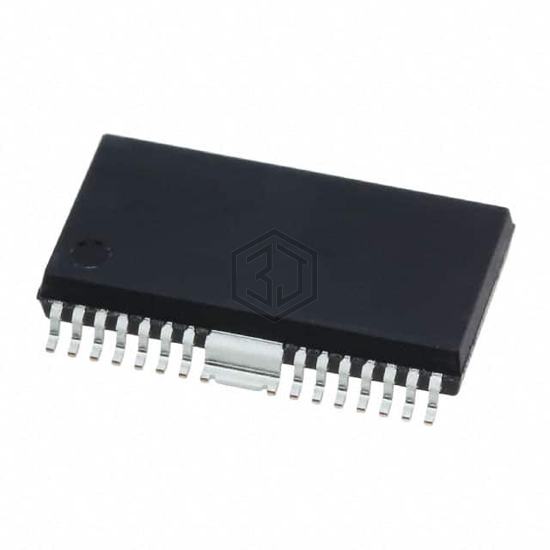

LB1945H-TLM-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER BIPOLAR 28HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 90°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs.
In Stock: 2,078
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 28V |
| Operating Temperature | -20°C ~ 90°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs |
| Supplier Device Package | 28-HSOPH |
LB1945H-TLM-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB1945H-MPB-E | onsemi | IC MTRDRV BIPLR 4.75-5.25V 28SOP | 100% | View |
| TB62262FTAG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 36WQFN | 100% | View |
| MPQ6527GF-AEC1-P | Monolithic Power Systems Inc. | 40V, 0.8A, 10-CHANNEL HALF-BRIDG | 96% | View |
| DRV8804DWR | Texas Instruments | IC MTR DRV UNIPLR 8.2-60V 20SOIC | 87% | View |
| TLE4207GXT | Infineon Technologies | TLE4207 - INTEGRATED HALF-BRIDGE | 87% | View |
| DRV10866DSCR | Texas Instruments | IC MOTOR DRVR 1.65V-5.5V 10WSON | 53% | View |
Submit your RFQ for LB1945H-TLM-E and get a quote within 24 hours.
