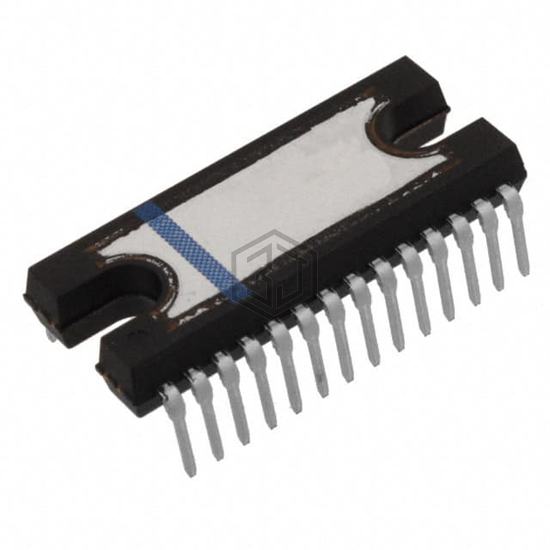

IC MTRDRV BIPLR 4.75-5.25V 28DIP
LB1945D-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MTRDRV BIPLR 4.75-5.25V 28DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 90°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 28-SDIP (0.500", 12.70mm) Exposed Pad.
In Stock: 113,160
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 28V |
| Operating Temperature | -20°C ~ 90°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-HDIP |
LB1945D-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E-L6219 | STMicroelectronics | IC MOTOR DRVR BIPOLAR 24POWERDIP | 97% | View |
| NJM3775D2 | Nisshinbo Micro Devices Inc. | IC MTRDRV BIPLR 4.75-5.25V 22DIP | 97% | View |
| UDN2916B-T | Allegro MicroSystems | IC MTRDRV BIPLR 4.75-5.25V 24DIP | 97% | View |
| A2919SB | Allegro MicroSystems | IC MTRDRV BIPLR 4.75-5.25V 24DIP | 97% | View |
| ZXBM5409Q-N-U | Diodes Incorporated | MOTOR DRIVER SERVO CTRL PDIP-8 | 87% | View |
| ZXBM5408Q-N-U | Diodes Incorporated | MOT DRV DC PDIP-8 TUBE 3.6K | 87% | View |
