IC MTR DRV BIPOLR 2.5-16V 10MFPS

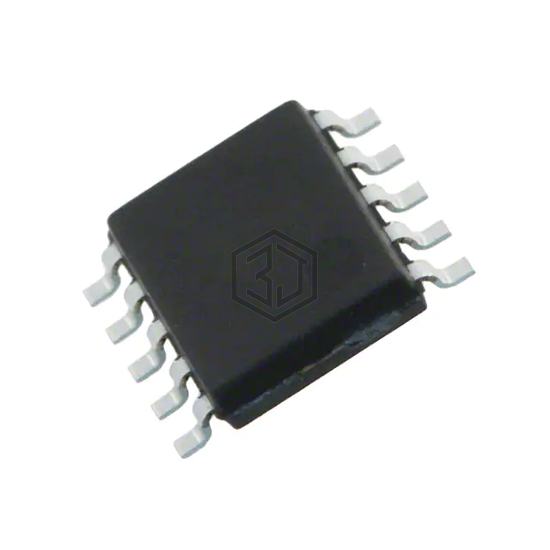

LB1909M-TE-L-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MTR DRV BIPOLR 2.5-16V 10MFPS. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply 2.5V ~ 16V, package / case 10-LSOP (0.173", 4.40mm Width).
In Stock: 3,418
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | 2.5V ~ 16V |
| Voltage - Load | 2.5V ~ 16V |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-LSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 10-MFPS |
LB1909M-TE-L-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AM4953MMTR-G1 | Diodes Incorporated | IC MOTOR DRIVER 2.2V-16V 10MSOP | 95% | View |
| MPQ6626GF-AEC1-P | Monolithic Power Systems Inc. | 40V, 0.8A, HEX HALF-BRIDGE MOTOR | 80% | View |
| TLE4207GXUMA2 | Infineon Technologies | IC MOTOR DRIVER 5V-18V 14DSO | 75% | View |
| TLE4206G | Infineon Technologies | BRUSH DC MOTOR CONTROLLER, 1A | 59% | View |
| DRV8805DWR | Texas Instruments | IC MTR DRV UNIPLR 8.2-60V 20SOIC | 58% | View |
| DRV8803DW | Texas Instruments | IC MTR DRV UNIPLR 8.2-60V 20SOIC | 58% | View |
Submit your RFQ for LB1909M-TE-L-E and get a quote within 24 hours.
