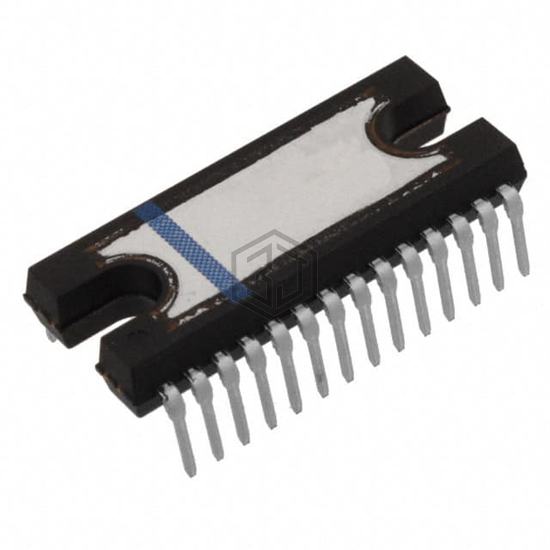

IC MOTOR DRIVER BIPOLAR 28HDIP
LB11946-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER BIPOLAR 28HDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply 3V ~ 3.6V, 4.5V ~ 5.5V, package / case 28-SDIP (0.500", 12.70mm) Exposed Pad.
In Stock: 1,216
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel, Serial |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-HDIP |
LB11946-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L293E | STMicroelectronics | IC MOTOR DRIVER BIPLR 20-PWRDIP | 79% | View |
| LB11983-E | Sanyo | 3 PH SENSORLESS MTR DRIVER | 79% | View |
| L293B | STMicroelectronics | IC MTR DRV BIPOLAR 4.5-36V 16DIP | 79% | View |
| AH5772-P-B | Diodes Incorporated | IC MOTOR DRIVER 2.4V-18V TO94 | 71% | View |
| ZXBM5409Q-N-U | Diodes Incorporated | MOTOR DRIVER SERVO CTRL PDIP-8 | 63% | View |
| ZXBM5408Q-N-U | Diodes Incorporated | MOT DRV DC PDIP-8 TUBE 3.6K | 63% | View |
Submit your RFQ for LB11946-E and get a quote within 24 hours.
