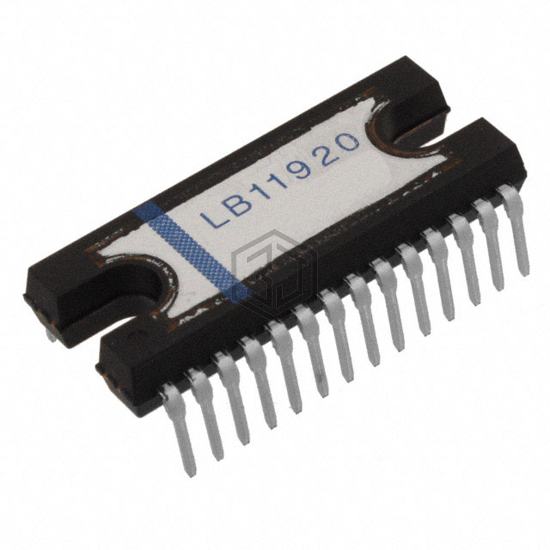

IC MOTOR DRIVER 4.5V-5.5V 28DIP
LB11920-E is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER 4.5V-5.5V 28DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 28-SDIP (0.500", 12.70mm) Exposed Pad.
In Stock: 7,356
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 3.5A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 9.5V ~ 30V |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-SDIP (0.500", 12.70mm) Exposed Pad |
| Supplier Device Package | 28-DIP |
LB11920-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK672-740B-E | Sanyo | TWO PHASE, STEPPING MOTOR DRIVER | 95% | View |
| TB67S101ANG | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 24SDIP | 93% | View |
| STA6940M | Sanken | IC MOTOR DRIVER 3V-5.5V 18ZIP | 87% | View |
| TB6549PG(O) | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 10V-27V 16DIP | 85% | View |
| TB67H302HG | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 8V-42V 25HZIP | 77% | View |
| TB6600HG | Toshiba Semiconductor and Storage | IC MTR DRVR BIPOLAR 8-42V 25HZIP | 77% | View |
Submit your RFQ for LB11920-E and get a quote within 24 hours.
