OPTOISO 5KV DARLINGTON 8-DIP

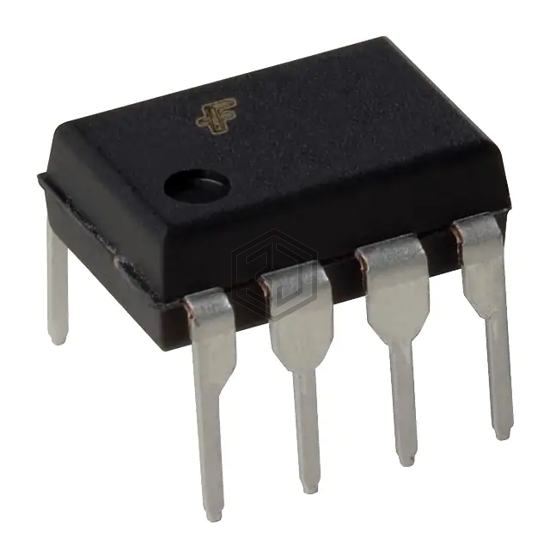

HCPL3700M is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5KV DARLINGTON 8-DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 8-DIP (0.300", 7.62mm), current - output / channel 30mA.
In Stock: 333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 6µs, 25µs |
| Rise / Fall Time (Typ) | 45µs, 0.5µs |
| Input Type | AC, DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for HCPL3700M and get a quote within 24 hours.
