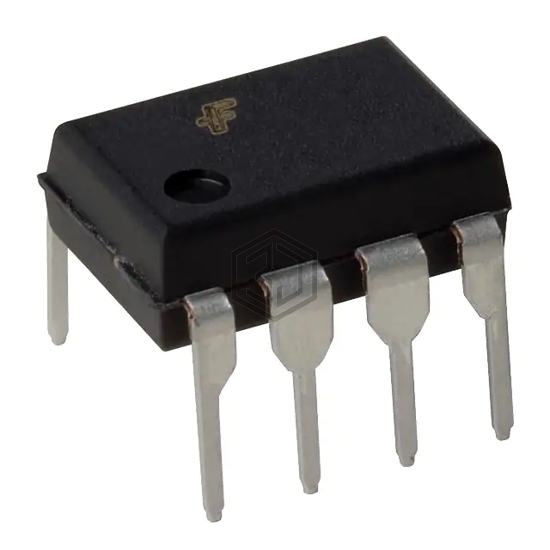

OPTOISO 2.5KV 2CH OPEN COLL 8DIP
HCPL2631V is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 2.5KV 2CH OPEN COLL 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 1,074
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 5kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 50ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for HCPL2631V and get a quote within 24 hours.
