OPTOISO 4.17KV TRANS W/BASE 6DIP

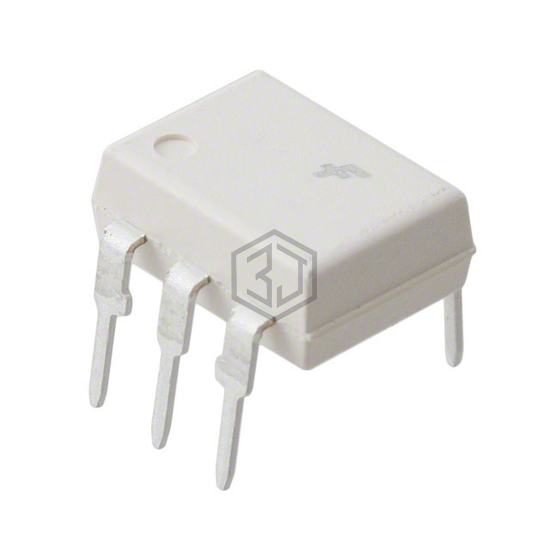

H11AV1AM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.18V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 300% @ 10mA |
| Turn On / Turn Off Time (Typ) | 15µs, 15µs (Max) |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
Submit your RFQ for H11AV1AM and get a quote within 24 hours.
