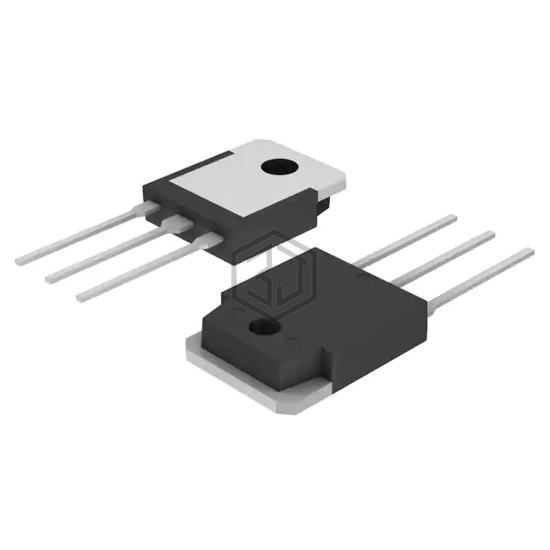

MOSFET N-CH 250V 62A TO3PN
FQA62N25C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 250V 62A TO3PN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3.
In Stock: 427
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 62A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 31A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6280 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 298W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3PN |
| Package / Case | TO-3P-3, SC-65-3 |
Submit your RFQ for FQA62N25C and get a quote within 24 hours.
