OPTOISO 3.75KV OPEN COLL 5MFP

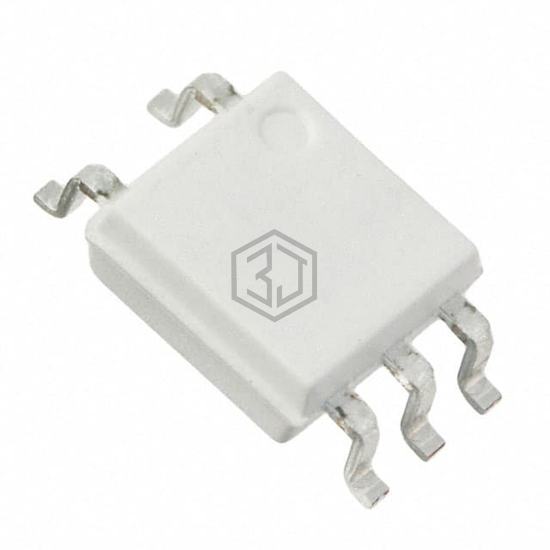

FODM611R2 is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 3.75KV OPEN COLL 5MFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.
In Stock: 2,308
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-Mini-Flat |
Submit your RFQ for FODM611R2 and get a quote within 24 hours.
