4 PIN TRANSISTOR OUTPUT MFP

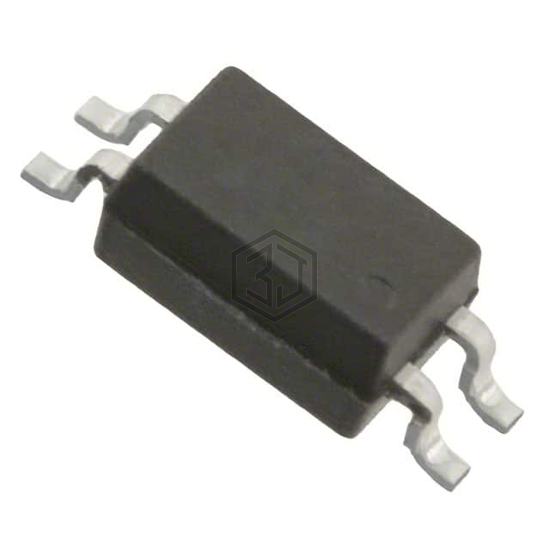

FODM217DR2 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. 4 PIN TRANSISTOR OUTPUT MFP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SOIC (0.173", 4.40mm Width).
In Stock: 6,592
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 300% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SOP |
Submit your RFQ for FODM217DR2 and get a quote within 24 hours.
