IPM DRIVER 10MB WL

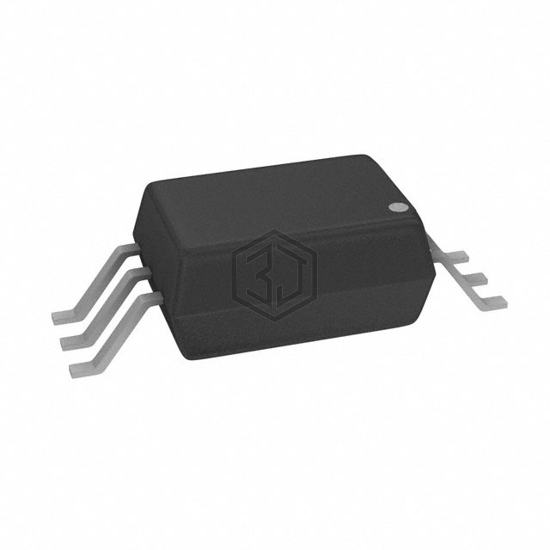

FOD8480T is a Isolators - Gate Drivers manufactured by onsemi. IPM DRIVER 10MB WL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 6,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 300ns, 300ns |
| Pulse Width Distortion (Max) | 250ns |
| Rise / Fall Time (Typ) | 15ns, 10ns |
| Current - Output High, Low | 2.5mA, 2.5mA |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Output Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SOP |
| Approval Agency | IEC/EN/DIN, UL |
Submit your RFQ for FOD8480T and get a quote within 24 hours.
