OPTOISO 5KV 1CH GATE DRIVER 5SOP

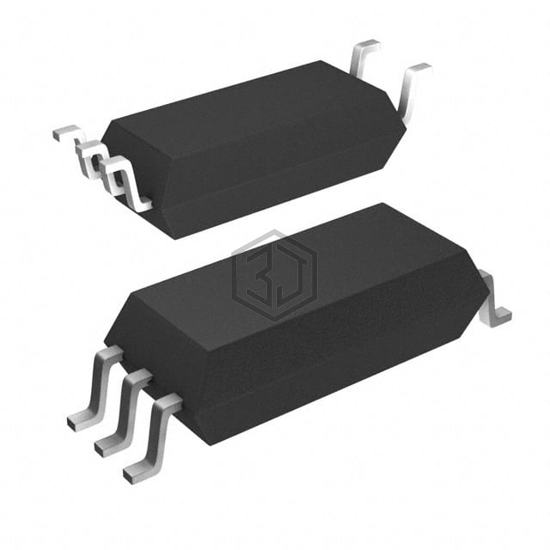

FOD8384R2V is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 6-SOIC (0.346", 8.80mm Width), 5 Leads.
In Stock: 9,677
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 210ns, 210ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 35ns, 25ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.346", 8.80mm Width), 5 Leads |
| Supplier Device Package | 5-SOP |
| Approval Agency | IEC/EN/DIN, UL |
Submit your RFQ for FOD8384R2V and get a quote within 24 hours.
