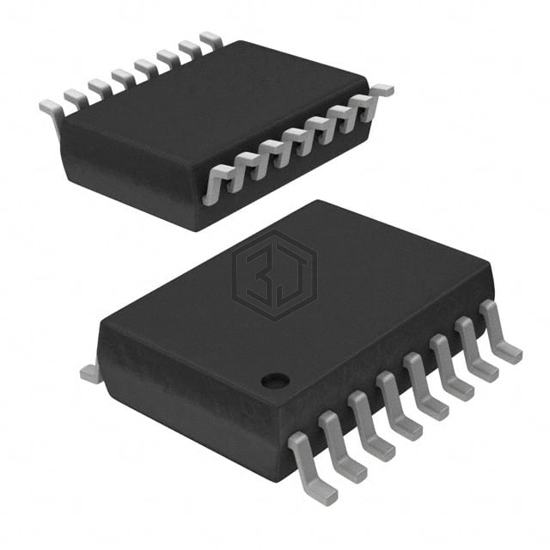

OPTOISO 4.243KV GATE DRIVER 16SO
FOD8333R2 is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 4.243KV GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 9,588
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 4243Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Pulse Width Distortion (Max) | 100ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 3V ~ 15V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SO |
| Approval Agency | UL |
