SSO6 3.3V 10MB WL

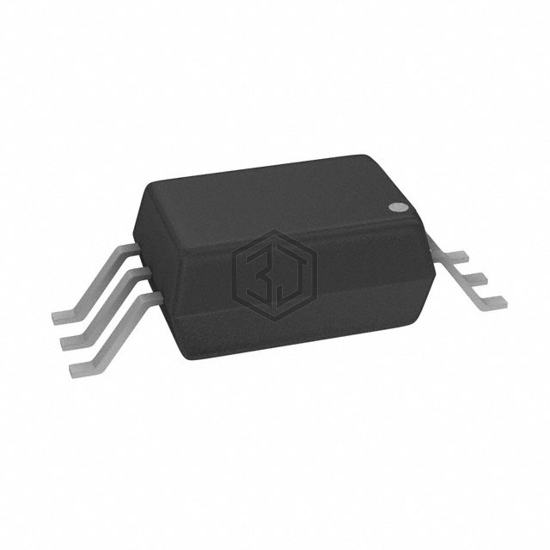

FOD8173T is a Optoisolators - Logic Output manufactured by onsemi. SSO6 3.3V 10MB WL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 3V ~ 5.5V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 5,273
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA |
| Data Rate | 20Mbps |
| Propagation Delay tpLH / tpHL (Max) | 55ns, 55ns |
| Rise / Fall Time (Typ) | 7ns, 7ns |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SOP |
Submit your RFQ for FOD8173T and get a quote within 24 hours.
