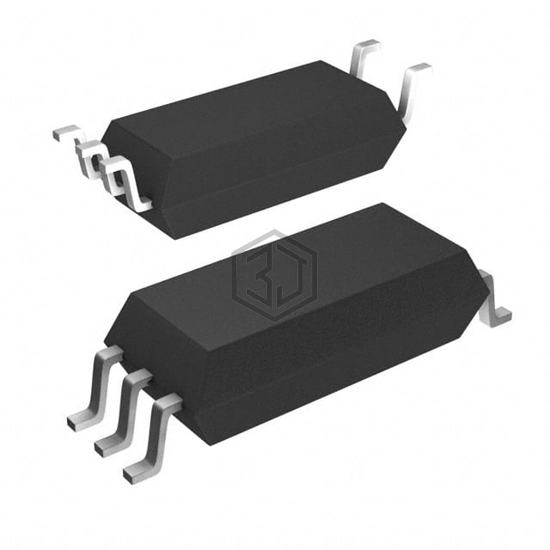

OPTOISO 5KV OPEN COLLECTOR 5SOP
FOD8160R2V is a Optoisolators - Logic Output manufactured by onsemi. OPTOISO 5KV OPEN COLLECTOR 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 3V ~ 5.5V, package / case 6-SOIC (0.362", 9.20mm Width), 5 Leads.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 90ns, 80ns |
| Rise / Fall Time (Typ) | 22ns, 9ns |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.362", 9.20mm Width), 5 Leads |
| Supplier Device Package | 5-SOP |
Submit your RFQ for FOD8160R2V and get a quote within 24 hours.
