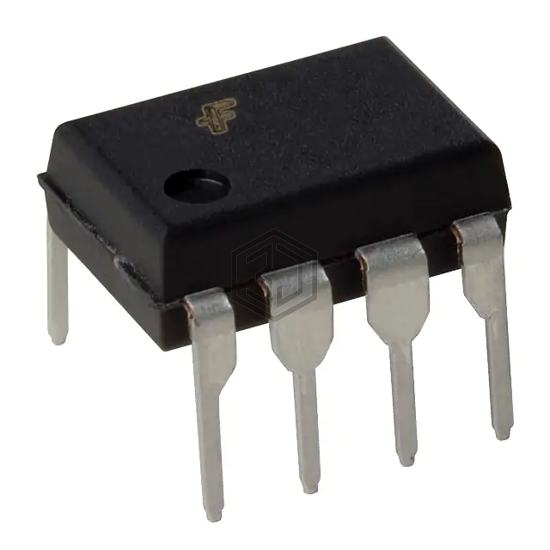

OPTOISO 5KV 1CH GATE DRIVER 8DIP
FOD3182 is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 210ns, 210ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 38ns, 24ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | UL |
